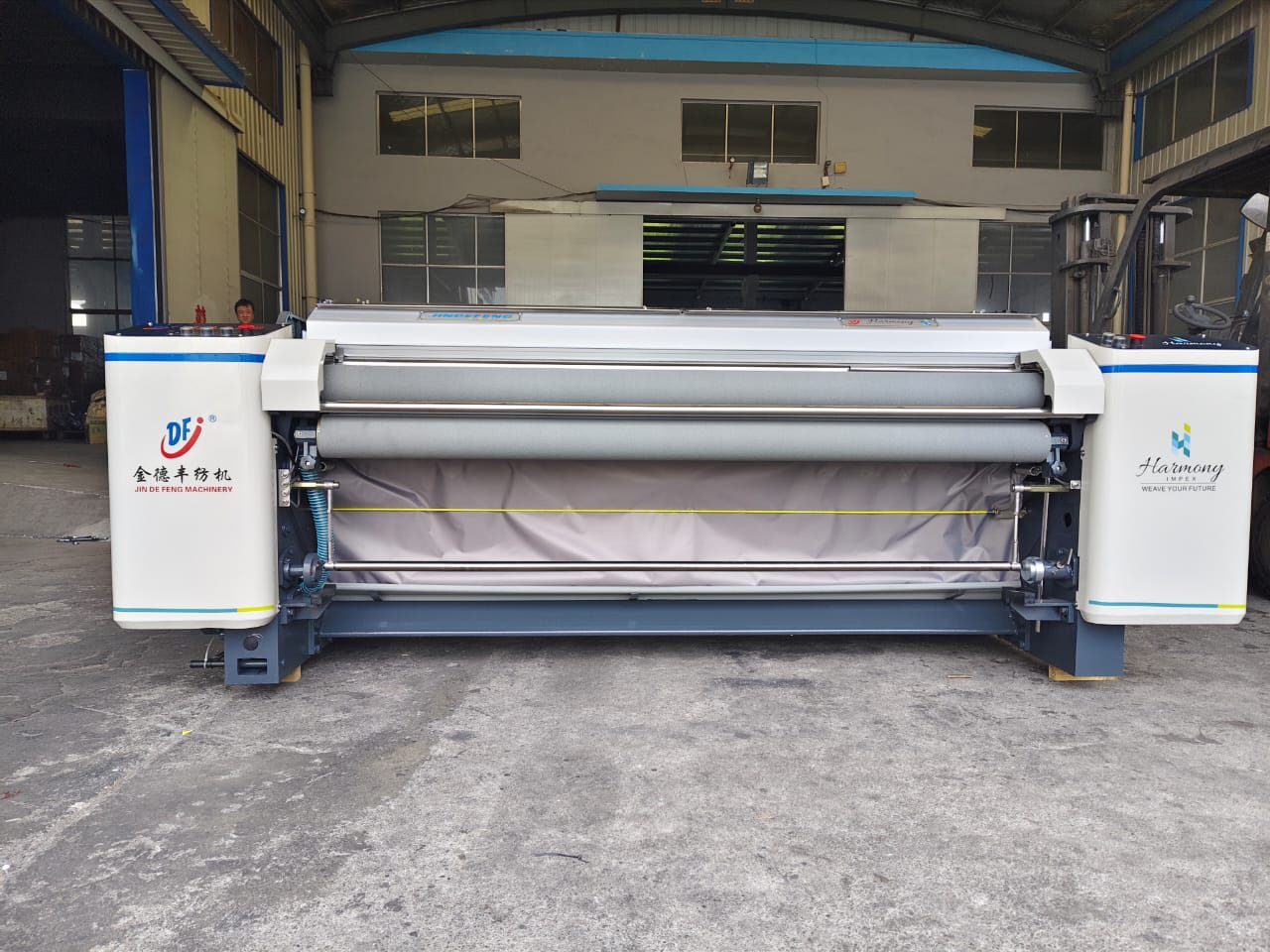

Plain Shedding Water Jet Loom
Innovation and suitable for weaving high weight and high density fabric
Products Features

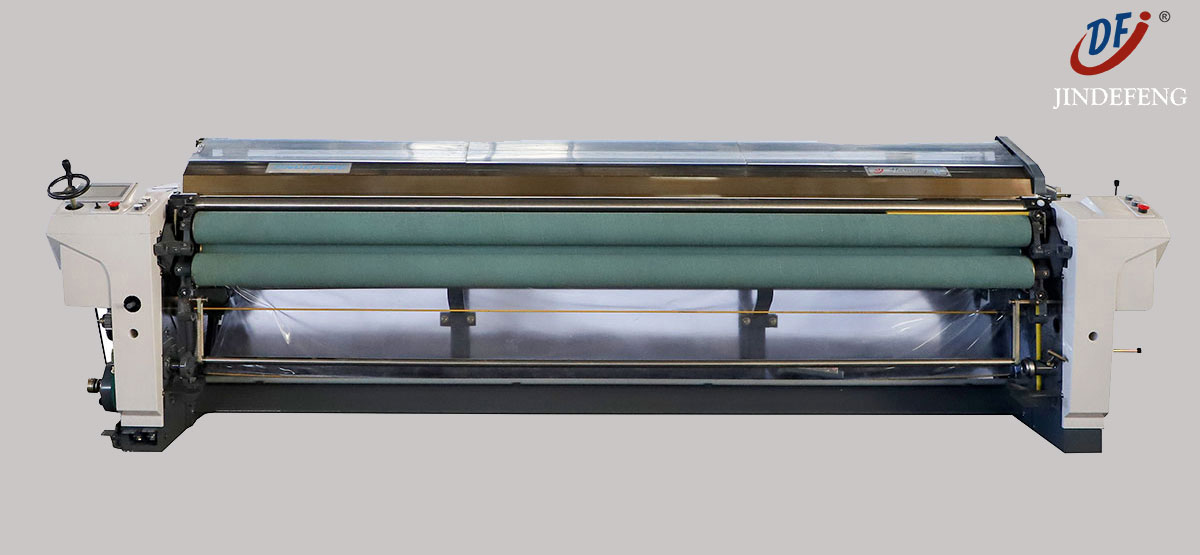

JDF - 822 is a new style water jet loom, which is got whole innovation and suitable for weaving high weight and high density fabric. The frame of whole machine is greatly enhanced on anti - vibration and perfect stability with high running speed and higher efficiency. It is suitable to weave medium and premium cloth.
The machine can be equipped with mechnical weft feeder, single - nozzle, double - nozzle or three - nozzle electronic weft selection system, meanwhile cam or dobby shedding is available.
Main Technical Parameters
- Reed width : 150, 170, 190, 210, 230, 260, 280, 320, 340, 360, 380, 420, 450cm
- Heald frame : plain 2-8 pcs; cam 2-12 pcs; dobby 2-16 pcs
- Number of nozzle : 1,2,3,4 or 6
- Weft feeder : mechnical or electronic
- Shedding type : plain, cam or dobby shedding
- Let off : MLO or ELO
- Take up : MTU or ETU
- Yarn range : 10-1200D hydrophobic fiber filament
- Running speed : 600-1200rpm (Working speed depends on fabric specification)
- Max weft insertion rate : 2280m/min
- Weft density : 5-60 picks/cm
- Motor Power : 1.5-7Kw
