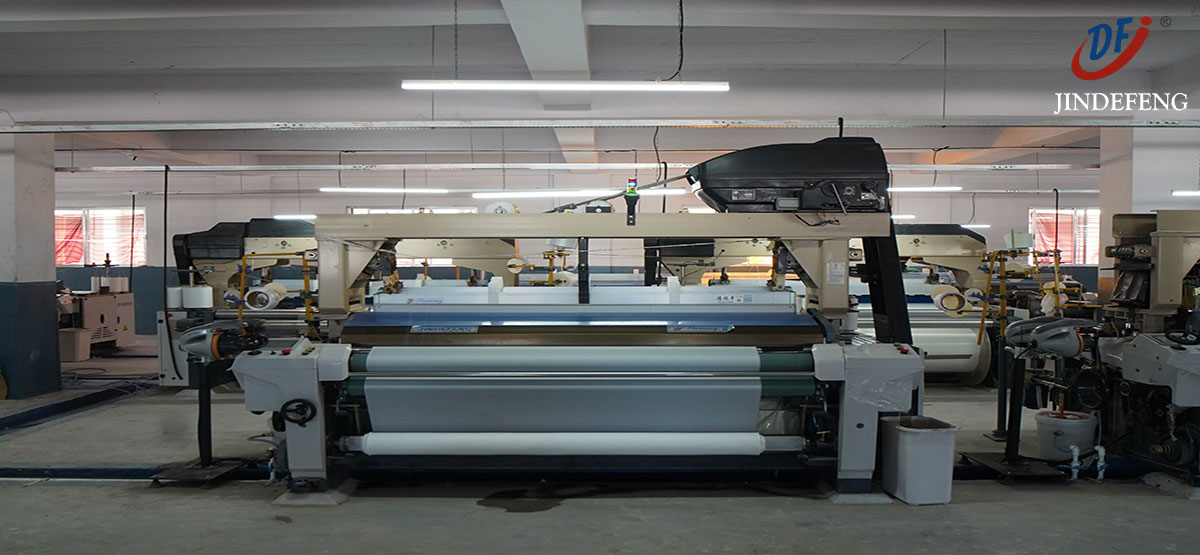

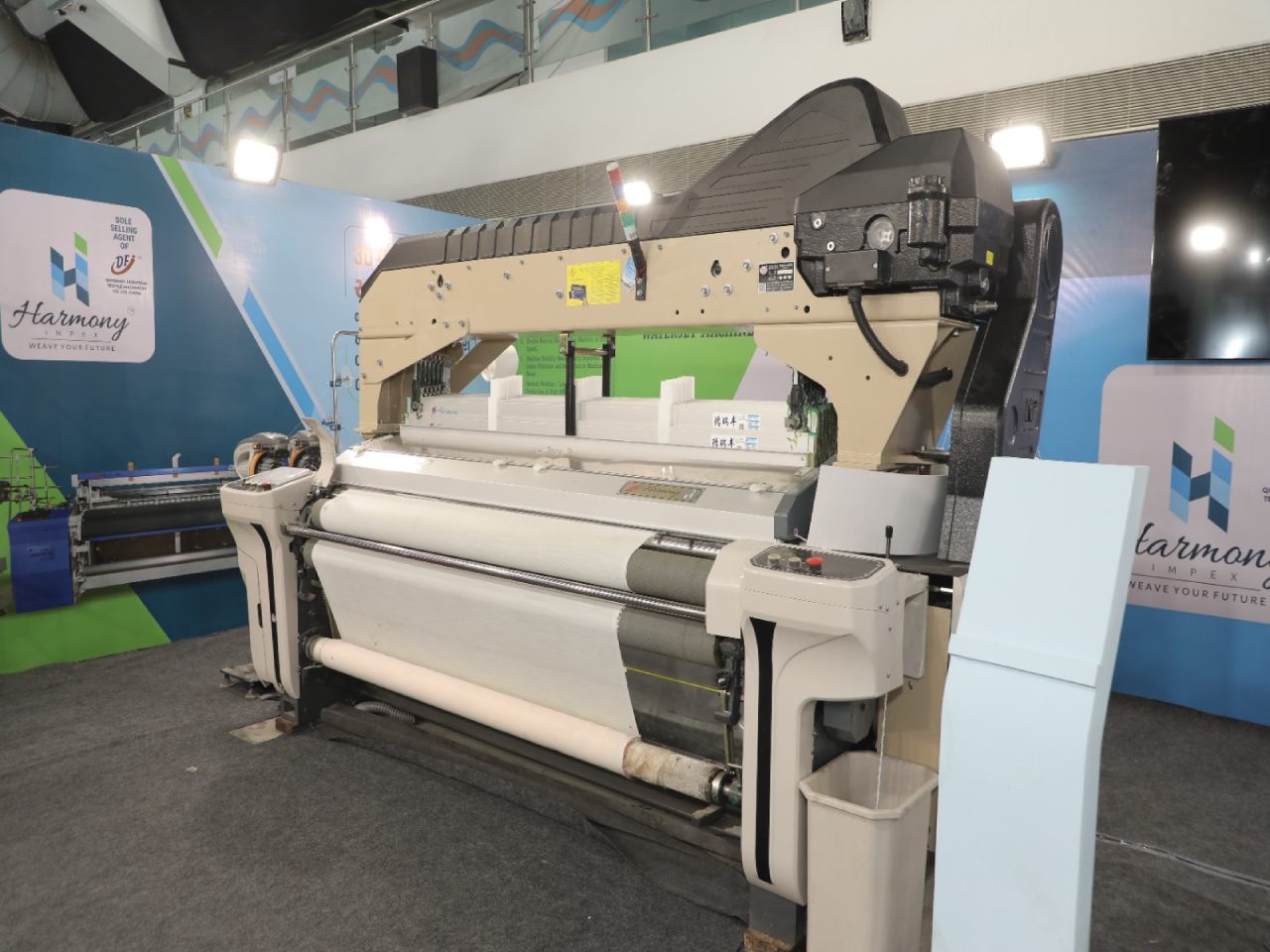

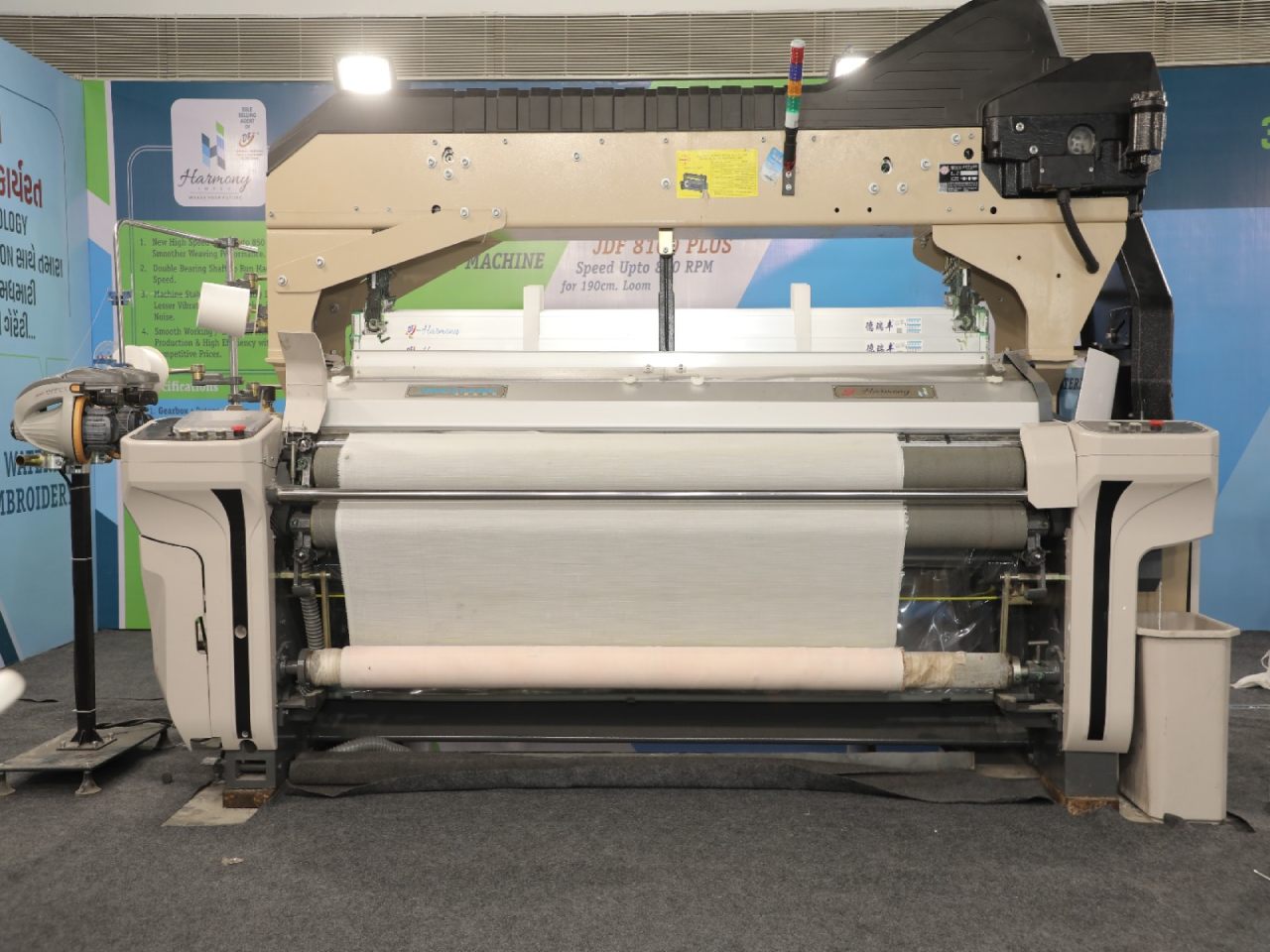

Dobby Shedding Water Jet Loom
An improvised heavy duty loom
Products Features
JDF - 408 plus is an improvised heavy duty loom to specially weave high GSM and high density fabrics. It is more suitable for weaving such specific fabrics at good efficiency. This model can be with configured single/double pumps 2/4 electronic feeders, ETU and ELO to enable variable weft density fabrics.
Main Technical Parameters
- Reed width : 170, 190, 210, 230, 260, 280, 340cm
- Weft insertion : Max 2280 meter/min
- Speed : Max 550 RPM
- Heald frame : 16 for dobby shedding
- Power : 2.8 Kw / 3.7 Kw
- Weft density : 5 -150 picks/cm
- Let off & Take off : Mechnical or electronic
